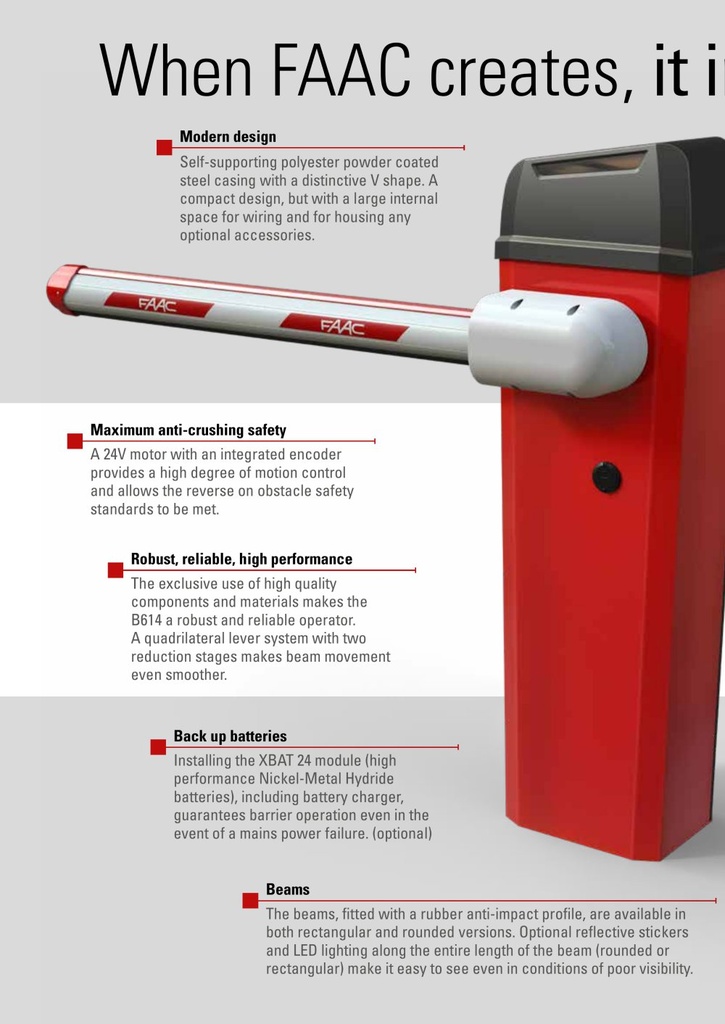

FAAC B614 BARRIER ( 5 MTR ) Italy (shc)
Supply and install automatic road barrier model: FAAC / 614

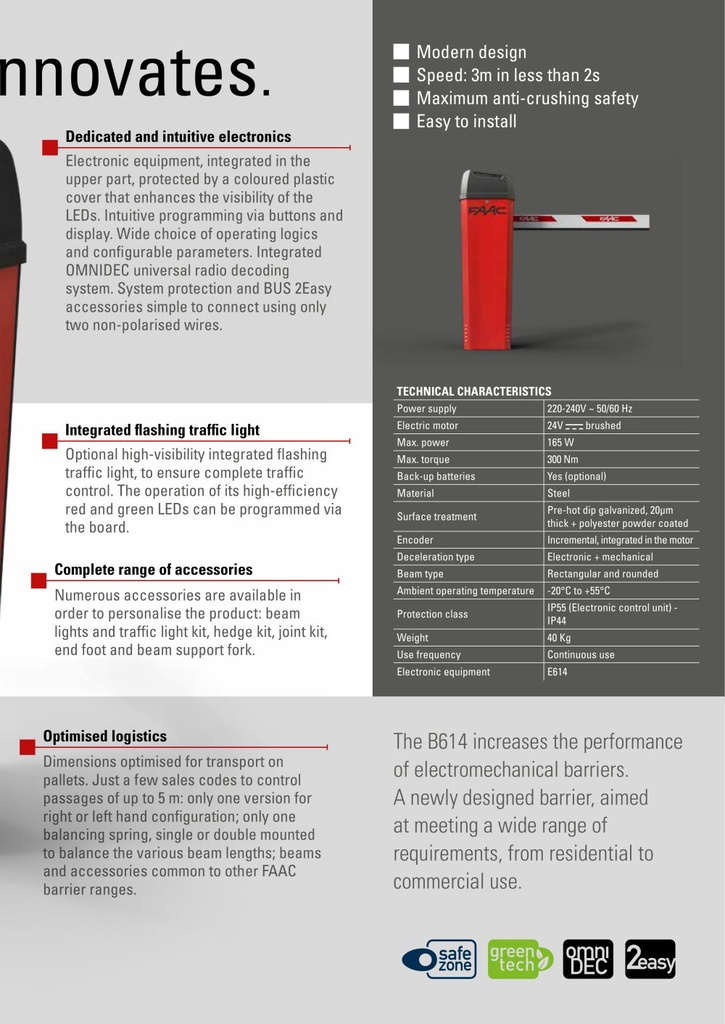

Electrical & Mechanical Specifications:
Power supply: 220–240V AC / 50–60 Hz
Motor type: 24V DC motor
Max. power: 165 W
Max. torque: 300 Nm
Opening time: < 2 seconds (3 m arm – 80°)
Protection rating: IP55 (control board) / IP44 (housing)
Duty cycle: Continuous duty
Operating temperature: −20°C to +55°C
Max. arm length: Up to 5 meters
Control unit: Integrated E614
Housing: Steel with anti-corrosion treatment and polyester coating
Kit Includes:
FAAC 614 barrier unit
Barrier arm (as per required length)
Integrated control board
Photocell (safety sensor)
Warning flasher
Base plate and mounting accessories
Complete wiring and installation accessories
Made in Italy
